● Compact body: smaller size, easier installation, beautiful and durable.
● Well-known brand motor: long life, stable operation, strong power and good quiet effect.
● Fluid dynamically optimized volute: Archimedean spiral air duct, full air volume and lower noise.
● Micro positive pressure air supply: quickly discharge indoor polluted air to the outside through the gaps of doors and windows.
● Imported high-efficiency filter material: PM2.5 one-time filtration efficiency is over 98%.
● Convenient connection cable: quickly connect to the power supply.
Covering air volume: 150~500(m3/h)
Rated power: 45~177(W)
Filtration efficiency: ≥97(%)
Primary filtration: Aluminum alloy filter, can filter large particles, leaves, hair, etc., can be washed repeatedly.
High-efficiency filtration: PM2.5 is filtered 99% in one go.

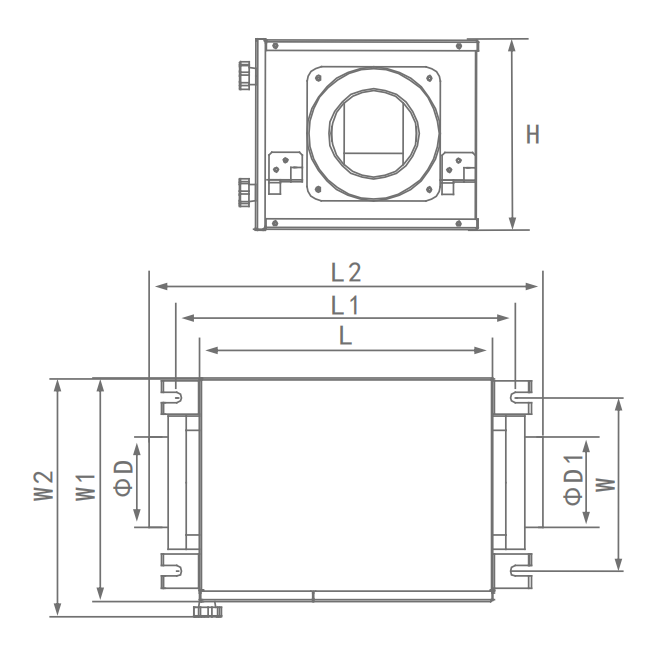

| Model | L | L1 | L2 | W | W1 | W2 | H | ΦD | ΦD1 |
| JSFG-15 | 312 | 361 | 419 | 184 | 236 | 253 | 204 | 100 | 100 |
| JSFG-20 | 312 | 360 | 419 | 228 | 280 | 297 | 204 | 110 | 110 |
| JSFG-25 | 348 | 397 | 455 | 230 | 280 | 297 | 221 | 150 | 150 |
| JSFG-30 | 348 | 397 | 455 | 230 | 280 | 297 | 221 | 150 | 150 |
| JSFG-35 | 373 | 421 | 480 | 271 | 330 | 347 | 236 | 150 | 150 |
| JSFG-50 | 373 | 421 | 536 | 371 | 430 | 447 | 246 | 200 | 200 |
Model | Part Number | Power supply | Rated power (W) | Air volume (m3/h) | Residual pressure | Noise | Weight | ||
high | Low | high | Low | ||||||
JSFG-15 | A1502 | 220V/50Hz | 45 | 32 | 150 | 95 | 80 | 31 | 5.5 |
JSFG-20 | A2002 | 220V/50Hz | 60 | 45 | 200 | 100 | 80 | 32 | 6.5 |
JSFG-25 | A2502 | 220V/50Hz | 70 | 58 | 250 | 165 | 100 | 34 | 7 |
JSFG-30 | A3002 | 220V/50Hz | 92 | 65 | 300 | 200 | 100 | 34 | 7.8 |
JSFG-35 | A3502 | 220V/50Hz | 115 | 70 | 350 | 210 | 100 | 35 | 9 |
JSFG-50 | A5002 | 220V/50Hz | 177 | 115 | 500 | 300 | 120 | 37 | 10.5 |
